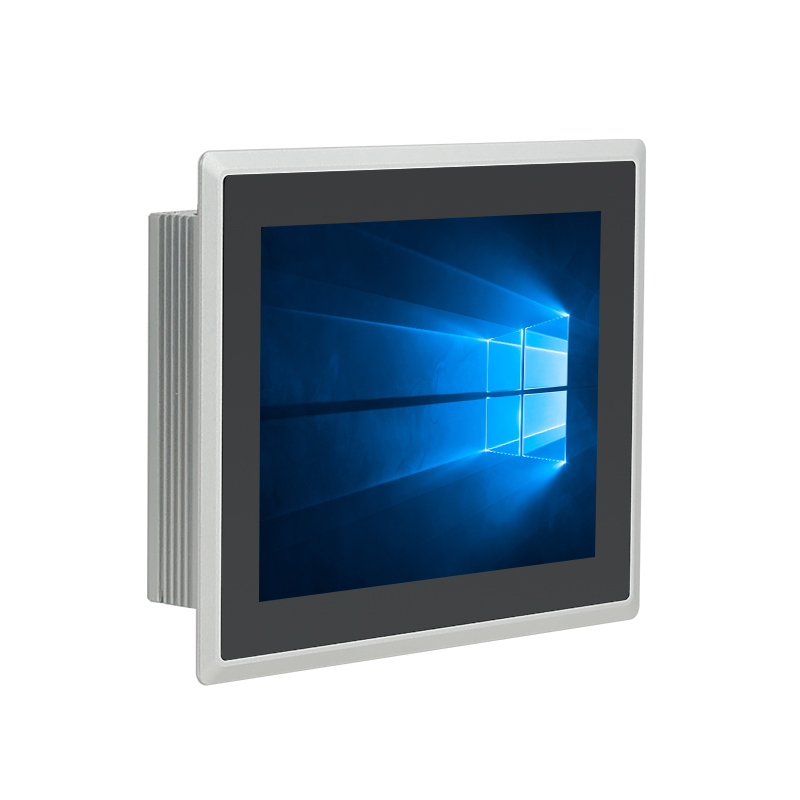

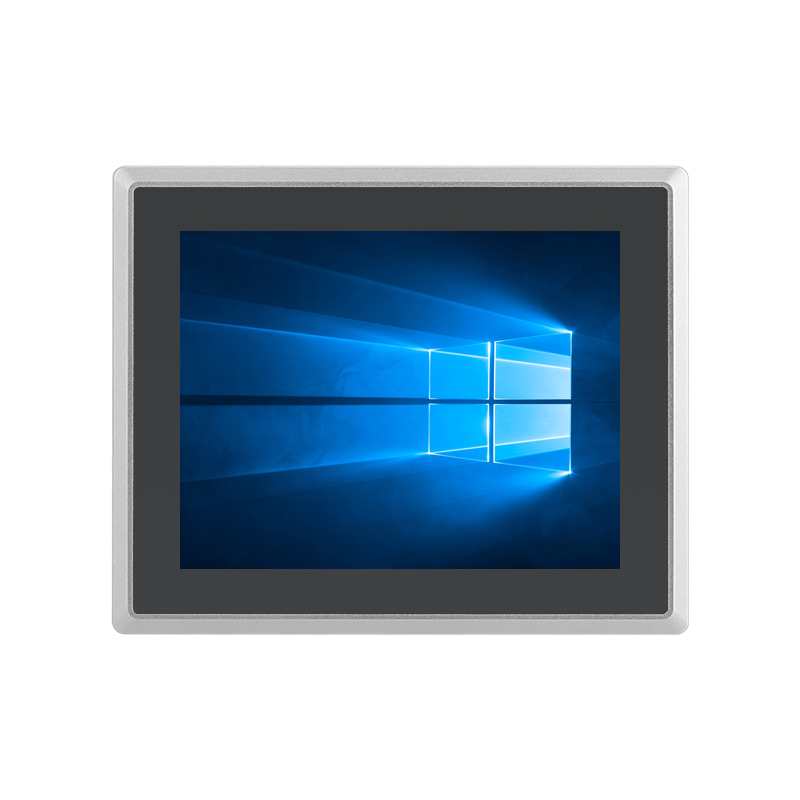

8″ Industrial Touch PC DM080NF

TouchWo

Lightweight, high-strength custom molding—built for industrial rigors.

Die-cast seamless housing delivers ultimate stability and durability.

External adapter design ensures a clean look and effortless operation.

Easily configure with diverse modular options for every requirement.

10-point touch with 5 ms response and ±1 mm precision for seamless interaction.

Multiple mounting choices enhance reliability and installation resilience.

Envelope

Additional information

Download

Downloads

Layer-group

Accessories

Comment-dots

Contact

Quick Links

Specification

PC System- Windows

  • CPU
    Intel Celeron® J6412
    Intel® Core™ i5-8Gens
    Intel® Core™i7-10Gens
  • Graphic GPU
    Intel® UHD Graphics
    Intel® Iris® Plus Graphics 645
    Intel® UHD Graphics
  • Audio
    HD Audio: ALC269
    HD Audio: ALC269
    HD Audio: ALC269
  • Memory
    DDR4-2666MHz- SODIMM-4G
    DDR4-2666MHz-SODIMM-8G
    DDR4-2666MHz-SODIMM-16G
  • Storage
    mSATA-128GB
    mSATA-256GB
    mSATA-512GB
  • Network
    10/100/1000M RJ45, 802.11a/b /g/n/ac Wifi
    10/100/1000M RJ45, 802.11a/b/g/n/ac Wifi
    10/100/1000M RJ45, 802.11a/b/g/n/acWifi
  • Pre-installed OS
    Windows 10 /11/Linux
    Windows 10 /11/Linux
    Windows 10 /11/Linux

LCD Panel

  • Screen diagonal8 inch
  • Physical resolution1024*768
  • Aspect ratio4：3
  • Display active screen size (mm)163（W）* 122.5（H）
  • Colours displayed16.7M , 52% (CIE1931)
  • Brightness (cd/m2）≥250cd/m2
  • Contrast≥ 800：1
  • Backlight Lifetime (hours)LED 15000
  • Refrash Rate60 Hz
  • Visual Angle H/V (°)85/85/85/85(Typ.)(CR≥10)

Operation Environment

  • Operation Temperature0℃-50℃
  • Operation Humidity10% - 80%
  • Storage Temperature-5℃-60℃
  • Storage Humidity10% - 85%
  • EMCCE/FCC ClassB

Power supply parameters

  • Power Input110-240V AC 50/60Hz
  • Power OutputDC 12V5A
  • Standby power consumption≤0.5W
  • Overall power consumption<40W
  • EMCCE/FCC ClassB

Touch Panel

  • Touch technologyPCAP
  • Response time<5ms
  • Touch points10 points standard
  • Touch effective recognition>1.5mm
  • Scanning Frequency200Hz
  • Scanning accuracy4096 * 4096
  • WorkingCurrent/Voltage180Ma/DC+5V±5%
  • Surface HardnessMohs class 7 explosion-proof glass

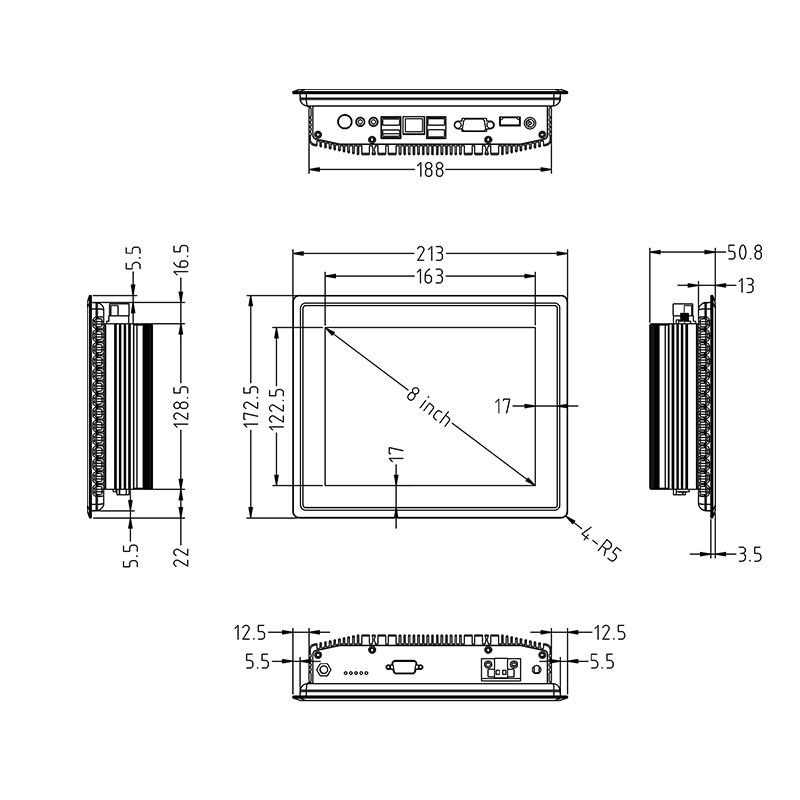

Dimension

  • Machine(mm)213（W）* 172.5（H）* 50.8（T）
  • Embedded opening size(mm)203（W）* 162.5（H）
  • Net weight1.55 KG
  • Gross weight3.10 KG

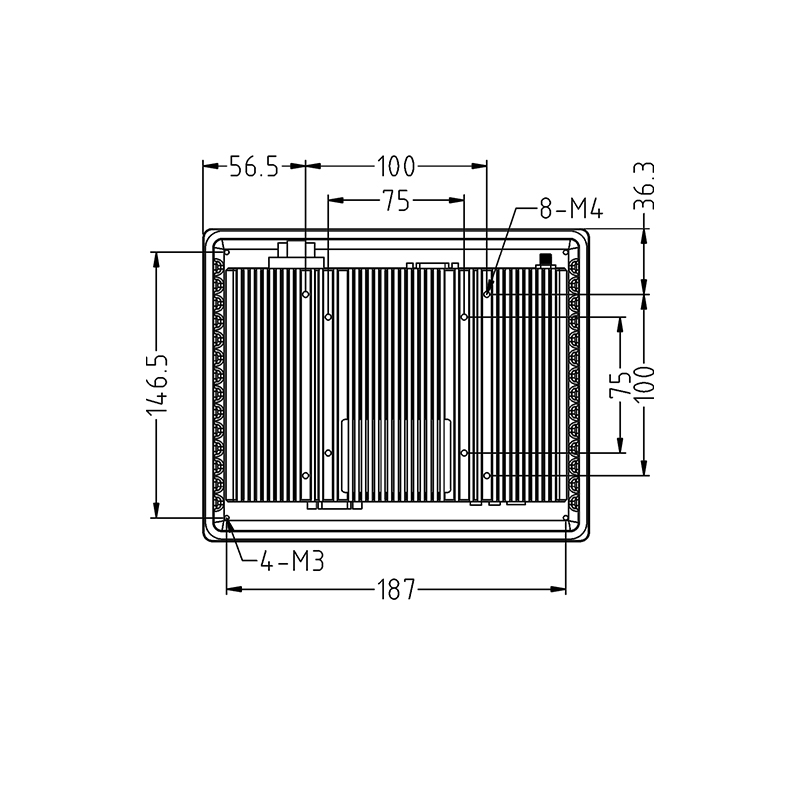

  • Mounting bracketEmbedded/Wall mounted

Included in the Delivery

  • Manual* 1
  • Snap* 4
  • WIFI antenna* 1
  • Power Adapter&cable* 1
  • Mounting bracketEmbedded/Wall mounted

File Download

DM080NF-X86-TouchWo-SpecSheet

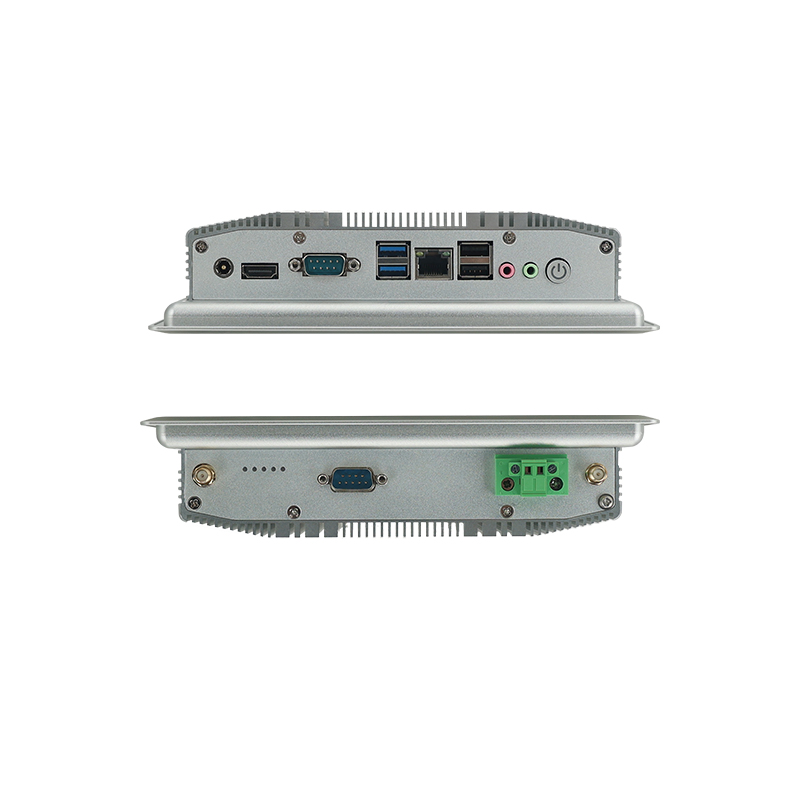

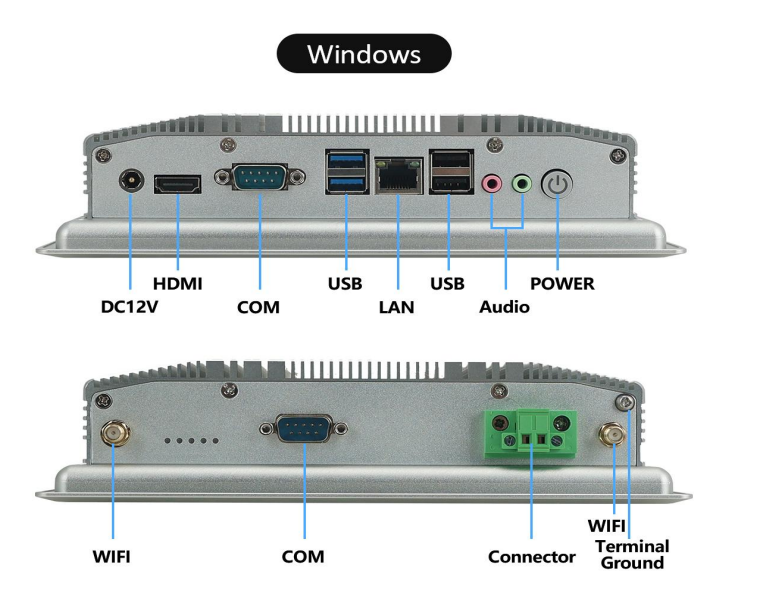

Interface l/0

Versatile Installation Options

Supports embedded and wall-mounted setups, offering flexibility for any installation requirement.

As Seen in Diverse Industries

TouchWo enhances cost effectiveness while delivering a more smooth experience for intelligent interactions.
