Touch Screen Monitor DM17F
Touch Screen Monitor DM17FTouch Screen Monitor DM17F-1Touch Screen Monitor DM17F-3Touch Screen Monitor DM17F-4Touch Screen Monitor DM17F-5Touch Screen Monitor DM17F-6Touch Screen Monitor DM17F-7

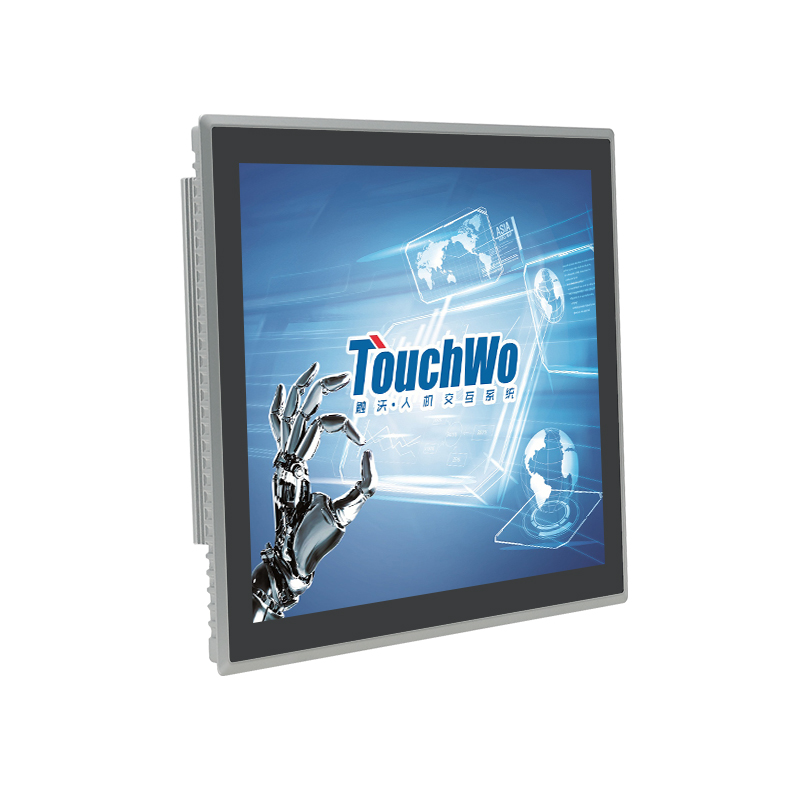

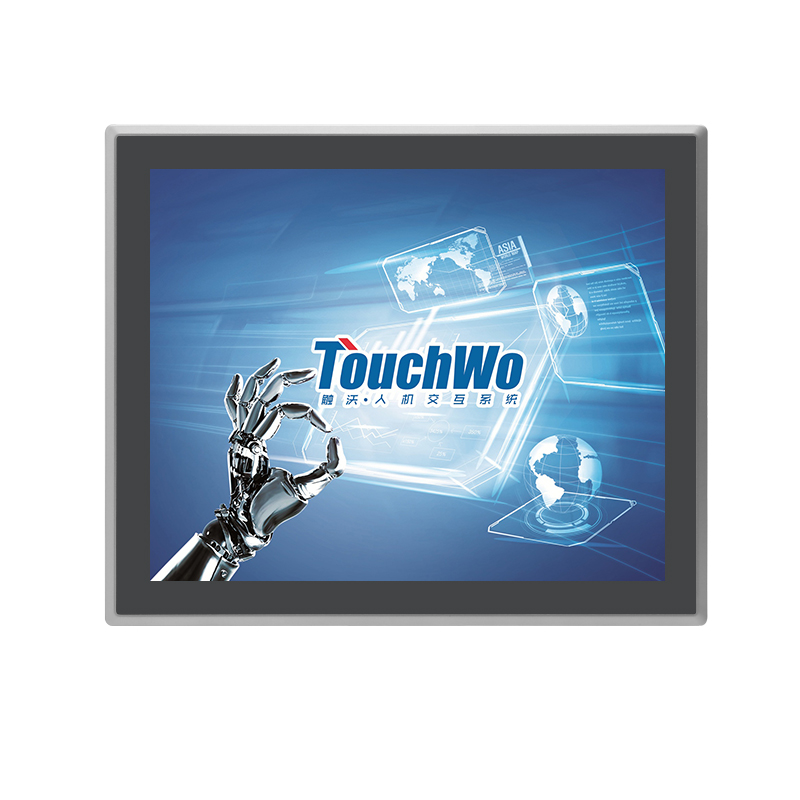

17″ Industrial Touch Screen Monitor DM17F

TouchWo

Lightweight, high-strength custom molding—built for industrial rigors.

Die-cast seamless housing delivers ultimate stability and durability.

External adapter design ensures a clean look and effortless operation.

Easily configure with diverse modular options for every requirement.

10-point touch with 5 ms response and ±1 mm precision for seamless interaction.

Multiple mounting choices enhance reliability and installation resilience.

Envelope

Additional information

Download

Downloads

Layer-group

Accessories

Comment-dots

Contact

Quick Links

Specification

LCD Panel

  • Screen diagonal17 inch
  • Physical resolution1280*1024
  • Aspect ratio4：3
  • Display active screen size (mm)339 * 271.5
  • Colours displayed16.7M / 16.7M,72%NTSC
  • Brightness (cd/m2）≥250cd/m2 , ≥350cd/m2
  • Contrast≥ 1000：1
  • Visual Angle H/V (°)89/89/89/89 (Typ.)(CR≥10)
  • Backlight Lifetime (hours)LED 30000
  • Refrash Rate60 Hz

Operation Environment

  • Operation Temperature0～50℃
  • Operation Humidity10% - 80%
  • Storage Temperature-5℃-60℃
  • Storage Humidity10% - 85%
  • EMCCE/FCC Class B

Power supply parameters

  • Power Input100-240V AC 50/60Hz
  • Power OutputDC 12V3A
  • Standby power consumption≤0.5W
  • Overall power consumption<20W

Touch Panel

  • Touch technologyPCAP
  • Response time<5ms
  • Touch points10 points standard
  • Touch effective recognition>1.5mm
  • Scanning Frequency200Hz
  • Scanning accuracy4096 * 4096
  • WorkingCurrent/Voltage180Ma/DC+5V±5%
  • Surface HardnessMohs class 7 explosion-proof glass

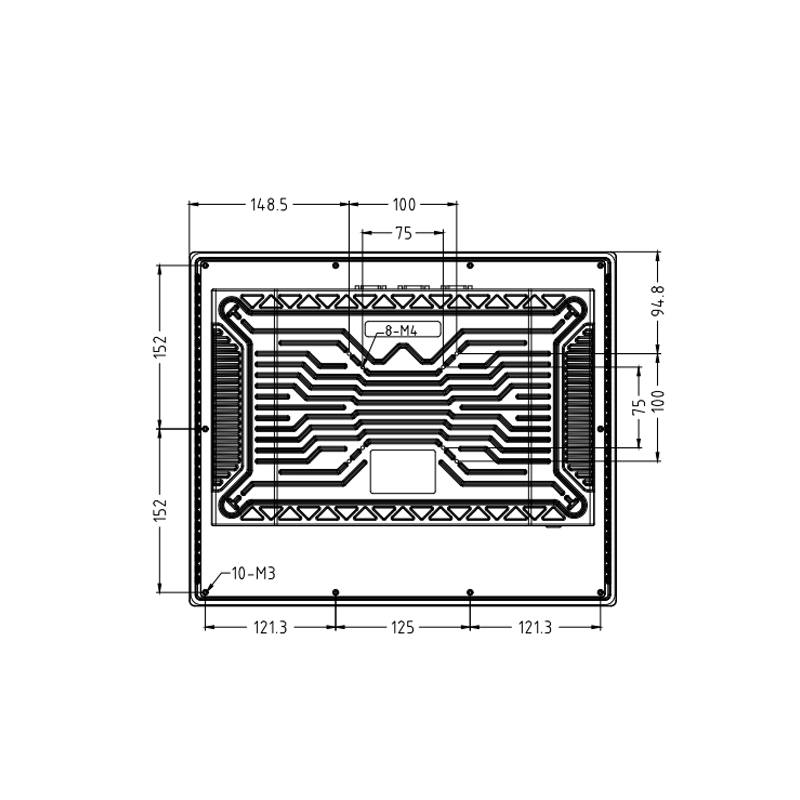

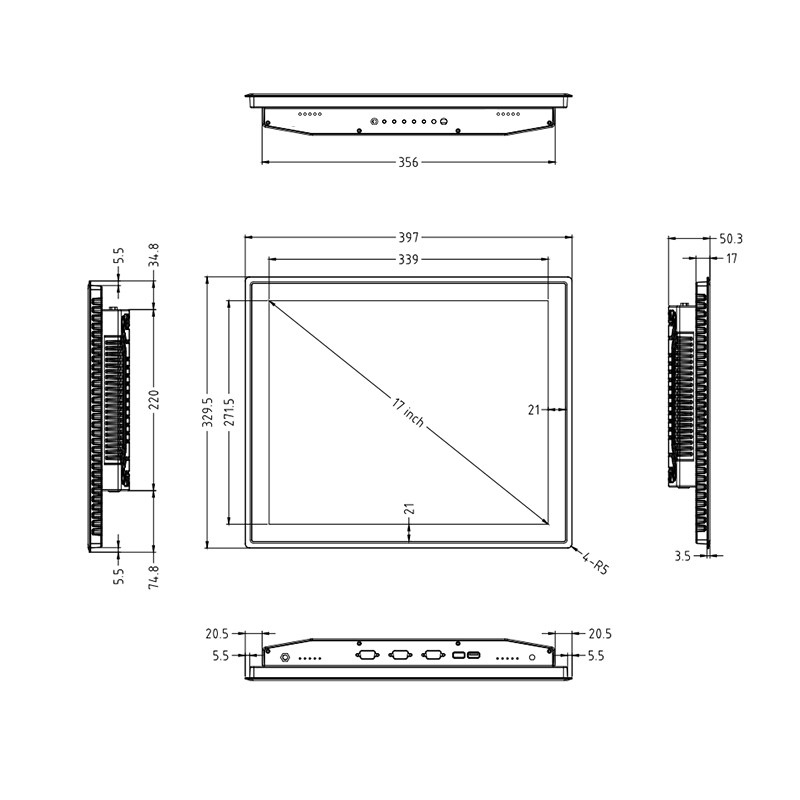

Dimension

  • Machine(mm)397（W）* 329.5（H）* 50.3（T）
  • Embedded opening size(mm)387 * 319.5
  • Net weight4.17 KG
  • Gross weight5.71 KG
  • Mounting bracketEmbedded/Wall mounted

Included in the Delivery

  • Manual* 1
  • Snap* 4
  • Power Adapter&cable* 1
  • HDMI/USB Cable* 1

File Download

DM17F-Monitor-TouchWo-SpecSheet

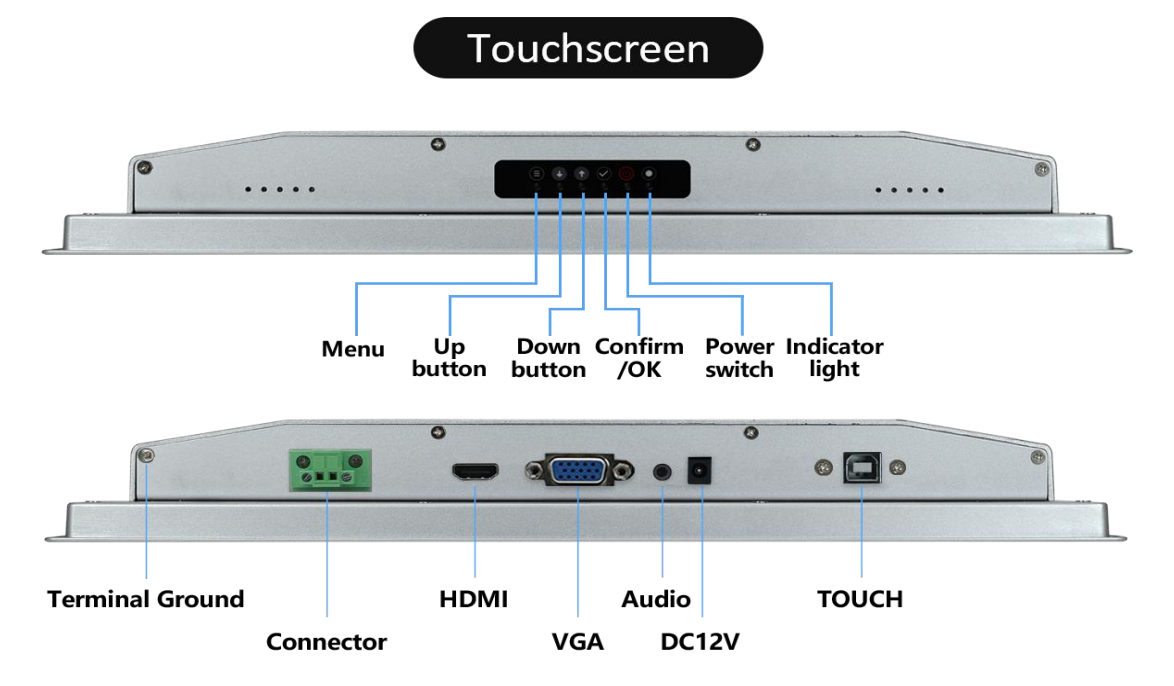

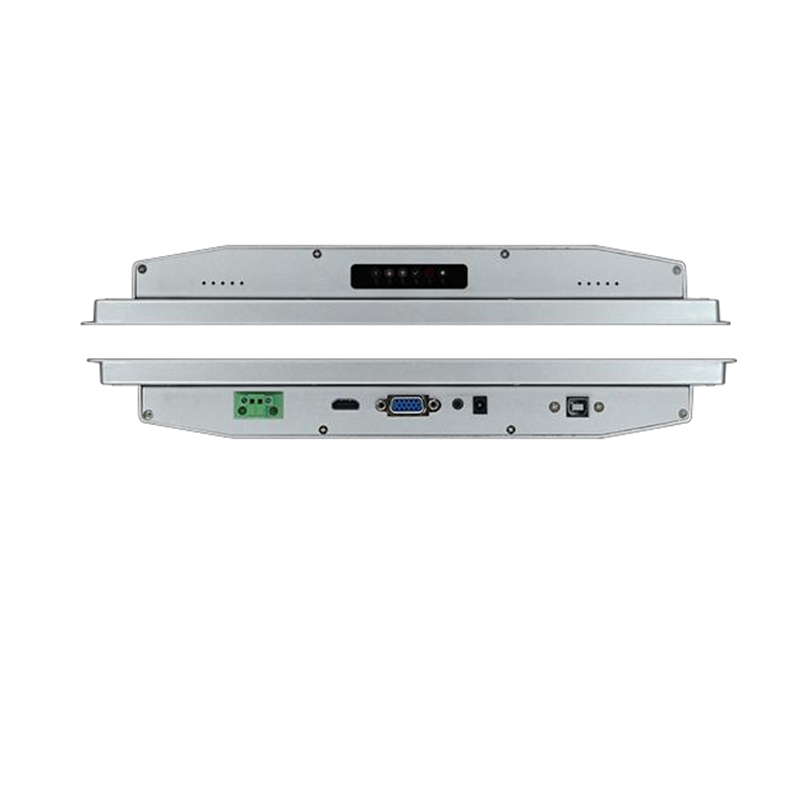

Interface l/0

Versatile Installation Options

Supports embedded and wall-mounted setups, offering flexibility for any installation requirement.

As Seen in Diverse Industries

TouchWo enhances cost effectiveness while delivering a more smooth experience for intelligent interactions.
