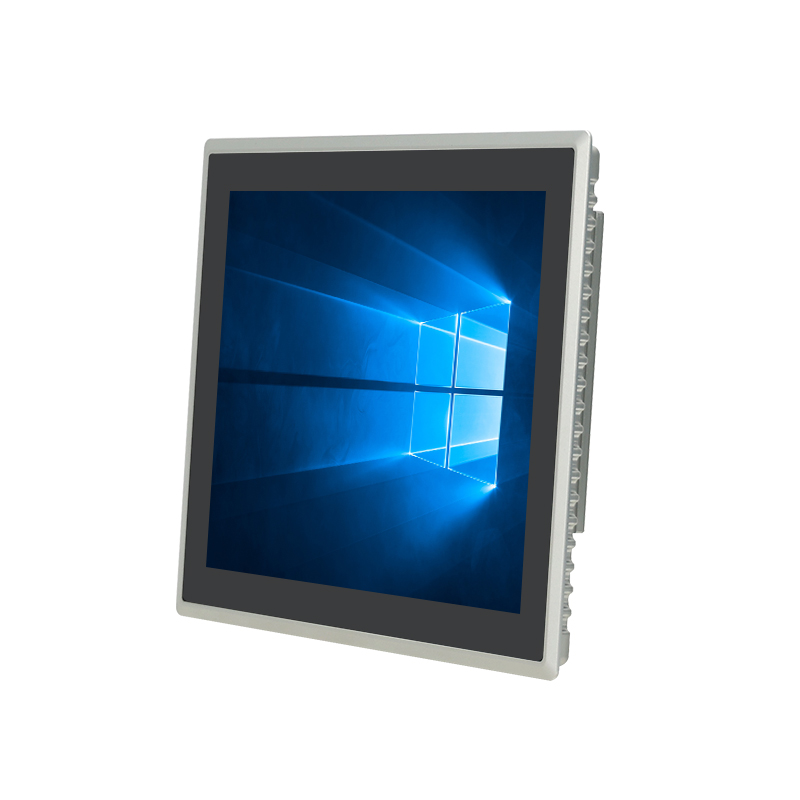

12.1″ Industrial Touch Screen PC DM121F

TouchWo

Lightweight, high-strength custom molding—built for industrial rigors.

Die-cast seamless housing delivers ultimate stability and durability.

External adapter design ensures a clean look and effortless operation.

Easily configure with diverse modular options for every requirement.

10-point touch with 5 ms response and ±1 mm precision for seamless interaction.

Multiple mounting choices enhance reliability and installation resilience.

Envelope

Additional information

Download

Downloads

Layer-group

Accessories

Comment-dots

Contact

Quick Links

Specification

PC System- Windows

  • CPU
    Intel Celeron® N5095
    Intel® Core™ i5
  • Graphic GPU
    Intel® UHD Graphics
    Intel® Iris® Plus Graphics 645
  • Audio
    HD Audio: ALC269
    HD Audio: ALC269
  • Memory
    DDR4-2666MHz-SODIMM- 4G
    DDR4-2666MHz-SODIMM-8G
  • Storage
    mSATA-128GB
    mSATA-256GB
  • Network
    10/100/1000M RJ45, 802.11a/b /g/n/ac Wifi
    10/100/1000M RJ45, 802.11a/b/g/n/ac Wifi
  • Pre-installed OS
    Windows 10 /11/Linux
    Windows 10 /11/Linux

LCD Panel

  • Screen diagonal12.1inch
  • Physical resolution1024*768
  • Aspect ratio4：3
  • Display active screen size (mm)247 * 185.5
  • Colours displayed16.7M , 72% NTSC
  • Brightness (cd/m2）≥350cd/m2
  • Contrast≥ 1200：1
  • Visual Angle H/V (°)88/88/88/88 (Typ.)(CR≥10)
  • Refrash Rate 60 Hz
  • Backlight Lifetime (hours)LED 50000

Operation Environment

  • Operation Temperature0～50℃
  • Operation Humidity 10% - 80%
  • Storage Temperature -5℃-60℃
  • Storage Humidity 10% - 85%
  • EMC CE/FCC Class B

Power supply parameters

  • Power Input110-240V AC 50/60Hz
  • Power OutputDC 12V5A
  • Standby power consumption≤0.5W
  • Overall power consumption<40W

Touch Panel

  • Touch technologyPCAP
  • Response time<5ms
  • Touch points10 points standard
  • Touch effective recognition>1.5mm
  • Scanning Frequency200Hz
  • Scanning accuracy4096 * 4096
  • WorkingCurrent/Voltage180Ma/DC+5V±5%
  • Surface HardnessMohs class 7 explosion- proof glass

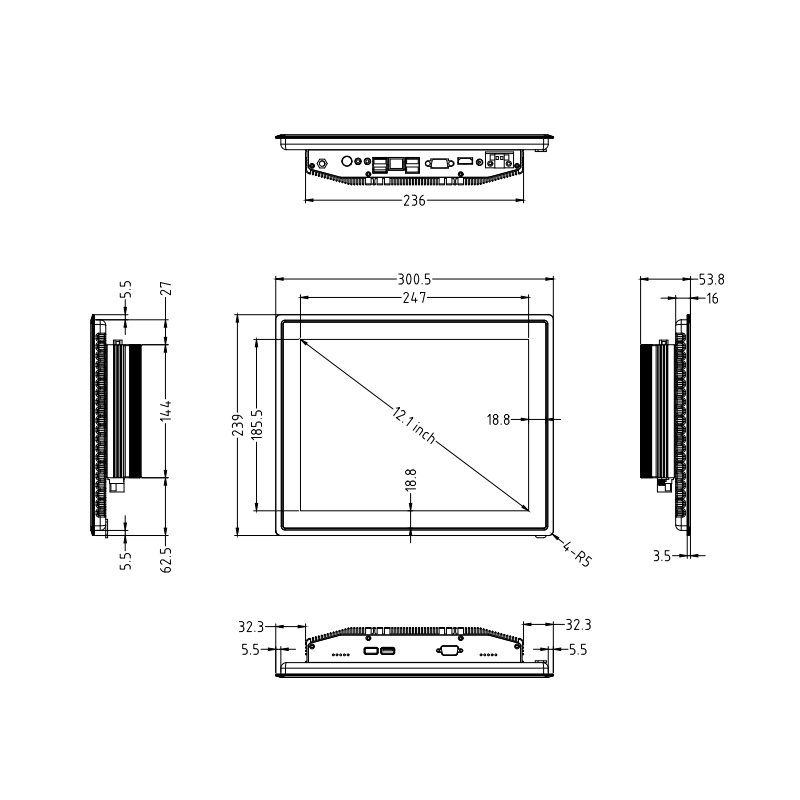

Dimension

  • Machine(mm)300.5（W)*239（H）*53.8（T）
  • Embedded opening size(mm)290.5（W）*229（H）
  • Net weight2.50 KG
  • Gross weight4.26 KG

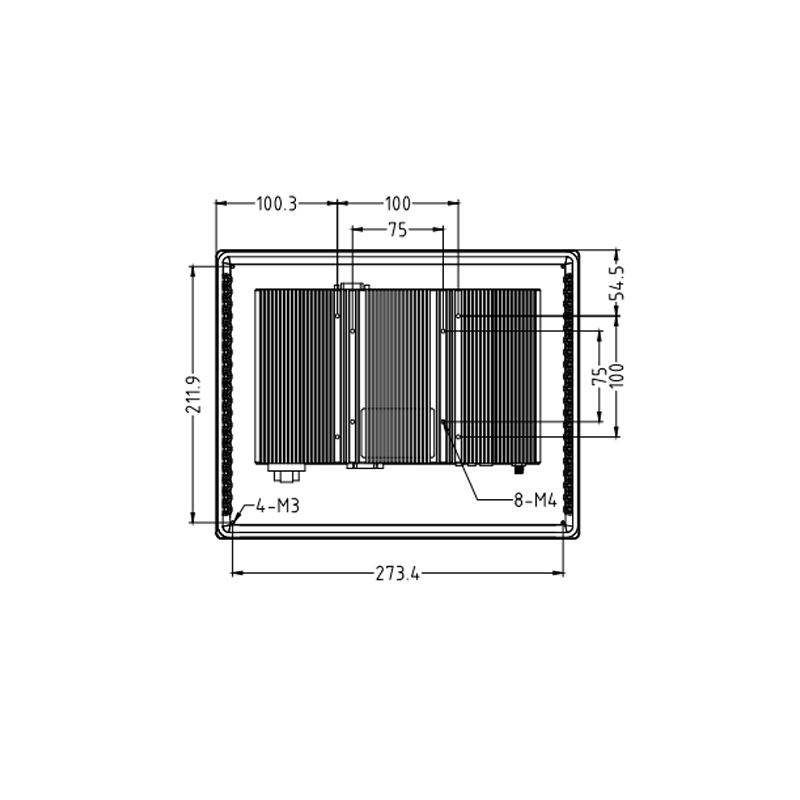

  • Mounting bracketEmbedded/Wall mounted

Included in the Delivery

  • Manual* 1
  • Snap* 4
  • WIFI antenna* 1
  • Power Adapter&cable* 1

File Download

DM121F-X86-TouchWo-SpecSheet

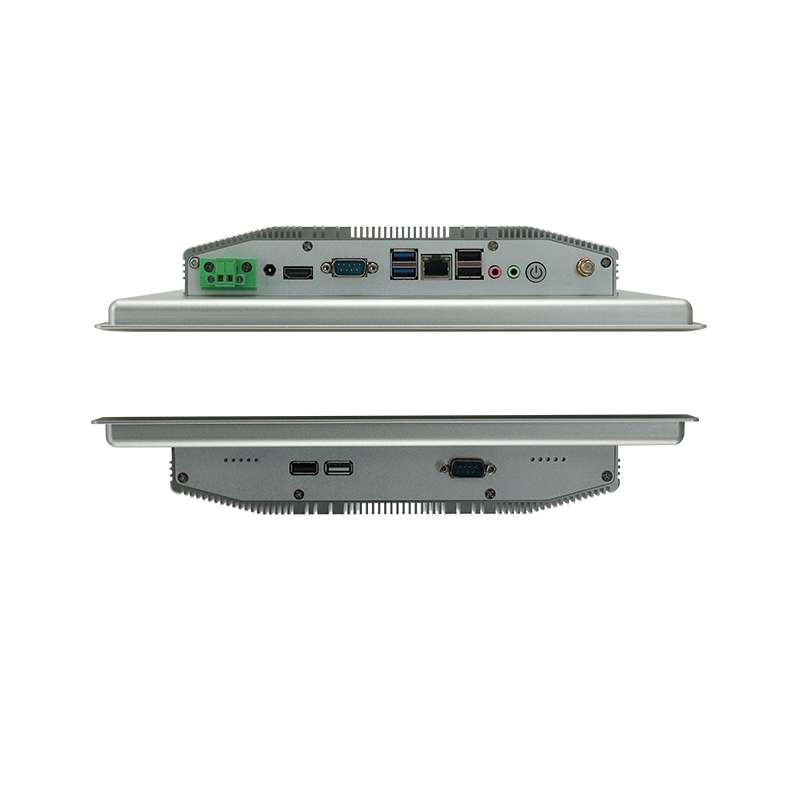

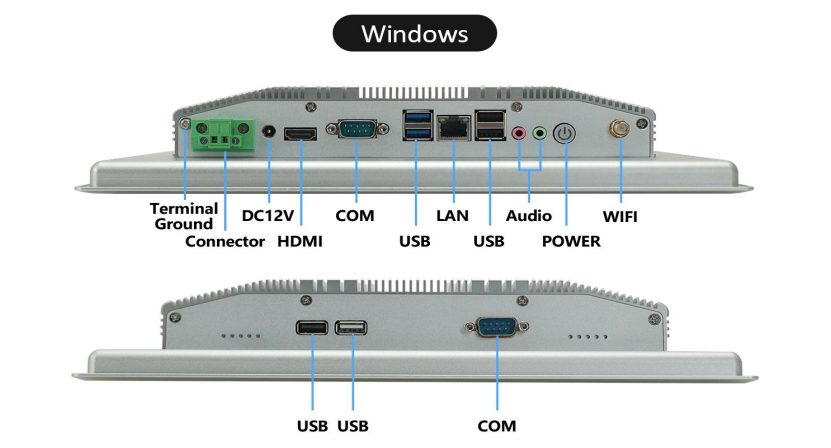

Interface l/0

Versatile Installation Options

Supports embedded and wall-mounted setups, offering flexibility for any installation requirement.
