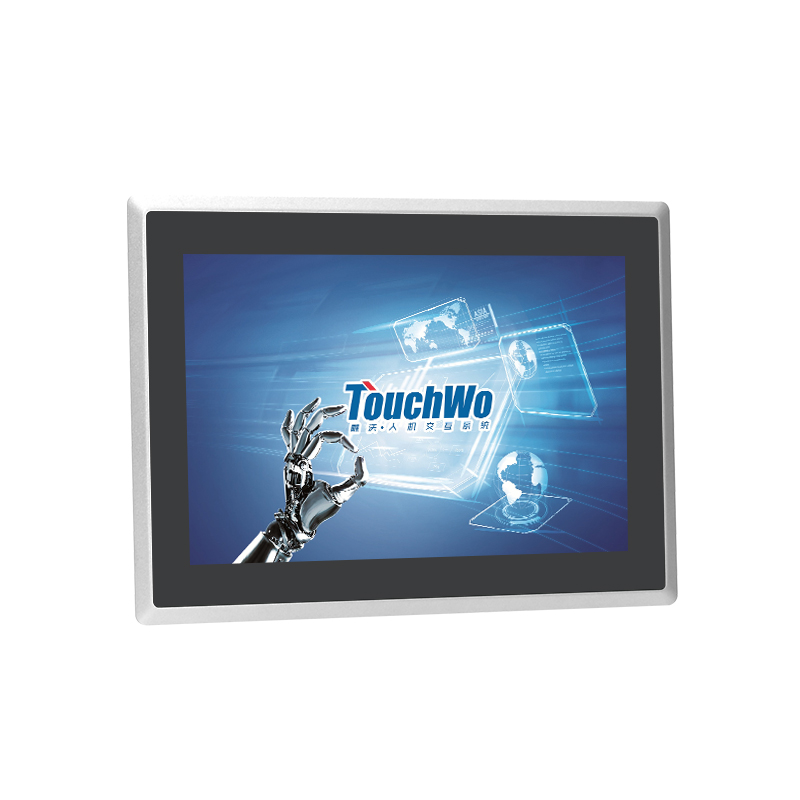

10.1″ Industrial Touch Screen Monitor DM101F

TouchWo

Lightweight, high-strength custom molding—built for industrial rigors.

Die-cast seamless housing delivers ultimate stability and durability.

External adapter design ensures a clean look and effortless operation.

Easily configure with diverse modular options for every requirement.

10-point touch with 5 ms response and ±1 mm precision for seamless interaction.

Multiple mounting choices enhance reliability and installation resilience.

Envelope

Additional information

Download

Downloads

Layer-group

Accessories

Comment-dots

Contact

Quick Links

Specification

LCD Panel

  • Screen diagonal 10.1inch
  • Physical resolution 1280*800(1920*1200(optional)，1920*1200
  • Aspect ratio4：3
  • Display active screen size (mm) 217.6 * 136.5
  • Refrash Rate 60 Hz
  • Visual Angle H/V (°)85/85/85/85(Typ.)(CR≥10)
  • Brightness (cd/m2）≥250cd/m2 , ≥300cd/m2
  • Contrast≥ 1000：1 , ≥ 900：1
  • Colours displayed16.7M
  • Backlight Lifetime (hours)LED 15000 , LED 30000

Operation Environment

  • Operation Temperature 0℃-50℃
  • Operation Humidity 10% - 80%
  • Storage Temperature -5℃-60℃
  • Storage Humidity 10% - 85%
  • EMC CE/FCC Class B

Power supply parameters

  • Power Input100-240V AC 50/60Hz
  • Power OutputDC 12V3A
  • Standby power consumption≤0.5W
  • Overall power consumption<20W

Touch Panel

  • Touch technologyPCAP
  • Response time<5ms
  • Touch points10 points standard
  • Touch effective recognition>1.5mm
  • Scanning Frequency200Hz
  • Scanning accuracy4096 * 4096
  • WorkingCurrent/Voltage180Ma/DC+5V±5%
  • Surface HardnessMohs class 7 explosion- proof glass

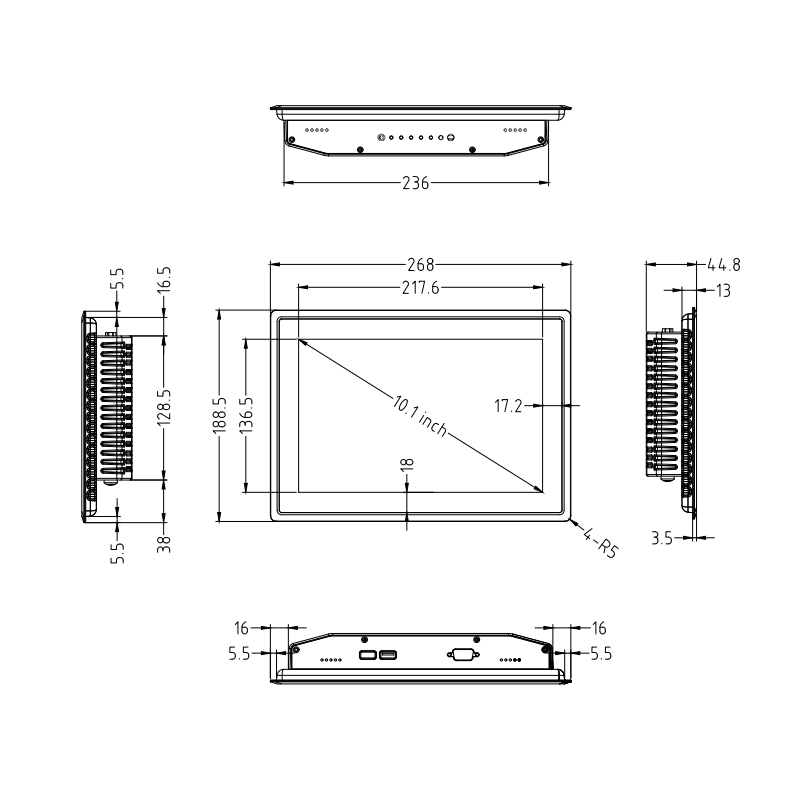

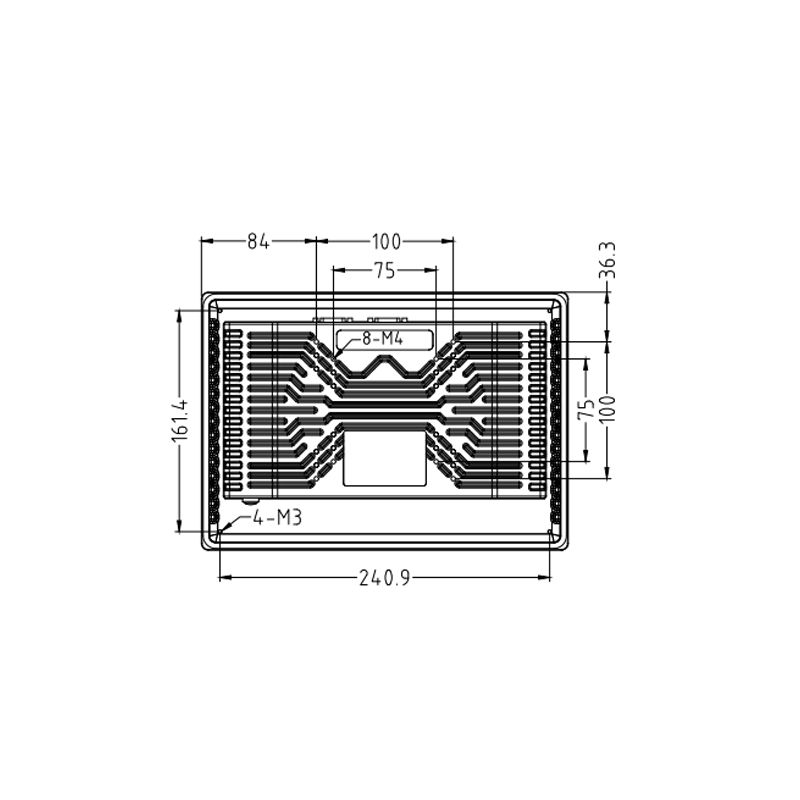

Dimension

  • Machine(mm)268（W）*188.5（H）* 44.8（T）
  • Embedded opening size(mm)258（W）* 178.5（H）
  • Net weight1.66 KG
  • Gross weight2.98KG
  • Mounting bracketEmbedded/Wall mounted

Included in the Delivery

  • Manual* 1
  • Snap* 4
  • Power Adapter&cable* 1
  • HDMI/USB Cable* 1

File Download

DM101F-Monitor-TouchWo-SpecSheet

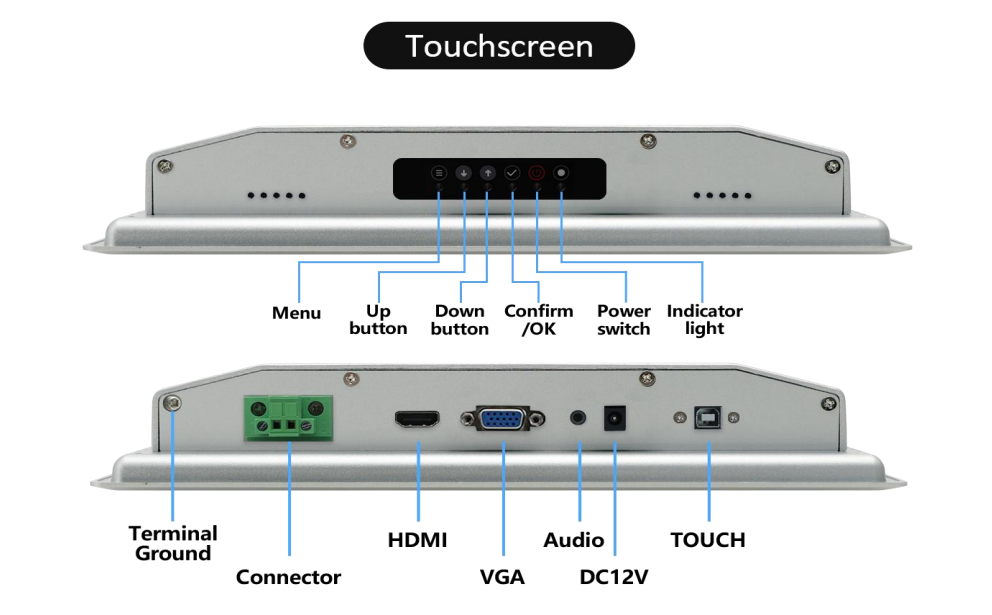

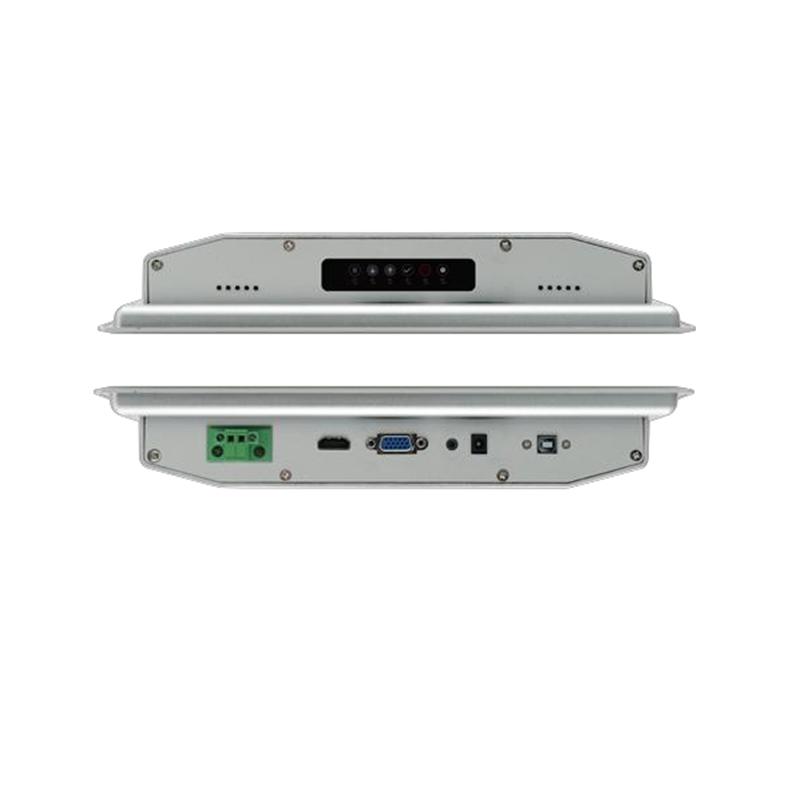

Interface l/0

Versatile Installation Options

Supports embedded and wall-mounted setups, offering flexibility for any installation requirement.

As Seen in Diverse Industries

TouchWo enhances cost effectiveness while delivering a more smooth experience for intelligent interactions.
