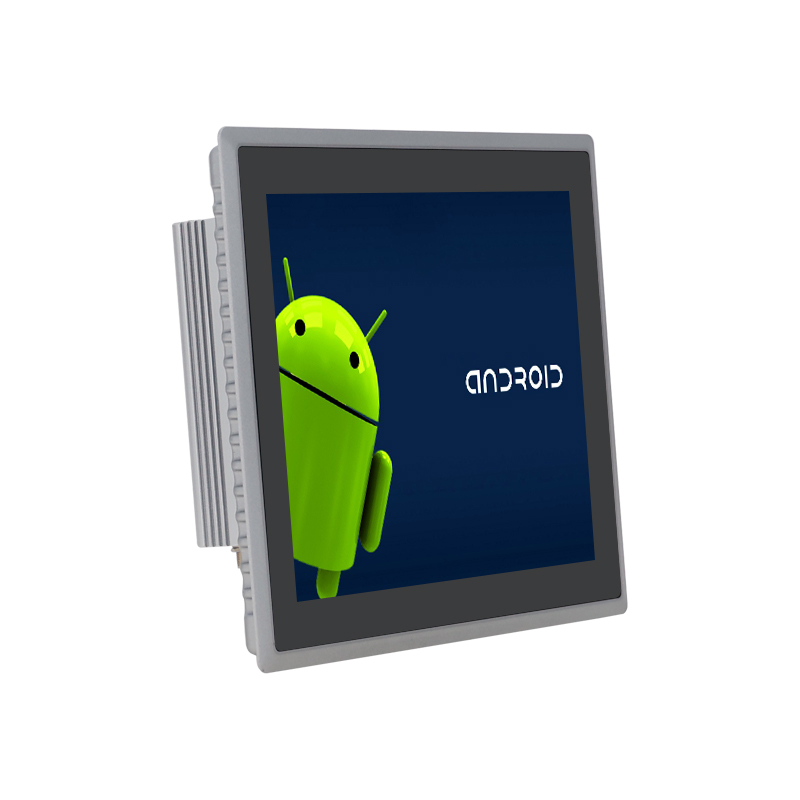

10.4" Industrial Android Touch PC DM104F
10.4" Industrial Android Touch PC DM104F

10.4″ Industrial Android Touch PC DM104F

TouchWo

Lightweight, high-strength custom molding—built for industrial rigors.

Die-cast seamless housing delivers ultimate stability and durability.

External adapter design ensures a clean look and effortless operation.

Easily configure with diverse modular options for every requirement.

10-point touch with 5 ms response and ±1 mm precision for seamless interaction.

Multiple mounting choices enhance reliability and installation resilience.

Envelope

Additional information

Download

Downloads

Layer-group

Accessories

Comment-dots

Contact

Quick Links

Specification

Android System

  • CPU
    Rockchip RK3568
    Rockchip RK3288
    Rockchip RK3588
  • Graphic GPU
    ARM G52 2EE
    Mali-T864
    Mali-G610
  • Audio
    -
    -
    -
  • Memory
    2G (4G optional)
    2G (4G optional)
    4G (8G optional)
  • Storage
    32G eMMC
    16G eMMC
    64G/128G eMMC
  • Network
    10/100M RJ45, 802.11 a/b/g/n/ac Wifi
    100/1000M RJ45, 802.11 a/b/g/n/ac Wifi
    100/1000M RJ45, 802.11 a/b/g/n/acWifi
  • Pre-installed OS
    Android 11
    Android 9
    Android 12

LCD Panel

  • Screen diagonal10.4inch
  • Physical resolution1024*768
  • Aspect ratio4：3
  • Display active screen size (mm)212.5 * 160 mm
  • Colours displayed 16.7M
  • Brightness (cd/m2）≥250cd/m2
  • Contrast≥ 1000：1
  • Visual Angle H/V (°)85/85/85/85(Typ.)(CR≥10)
  • BacklightWLED
  • Refrash Rate 60 Hz
  • Backlight Lifetime (hours)LED 30000

Operation Environment

  • Operation Temperature 0℃-50℃
  • Operation Humidity 10% - 80%
  • Storage Temperature -5℃-60℃
  • Storage Humidity 10% - 85%
  • EMC CE/FCC Class B

Power supply parameters

  • Power Input110-240V AC 50/60Hz
  • Power OutputDC 12V3A
  • Standby power consumption≤0.5W
  • Overall power consumption<20W

Touch Panel

  • Touch technologyPCAP
  • Response time<5ms
  • Touch points10 points standard
  • Touch effective recognition>1.5mm
  • Scanning Frequency200Hz
  • Scanning accuracy4096 * 4096
  • WorkingCurrent/Voltage180Ma/DC+5V±5%
  • Surface HardnessMohs class 7 explosion- proof glass

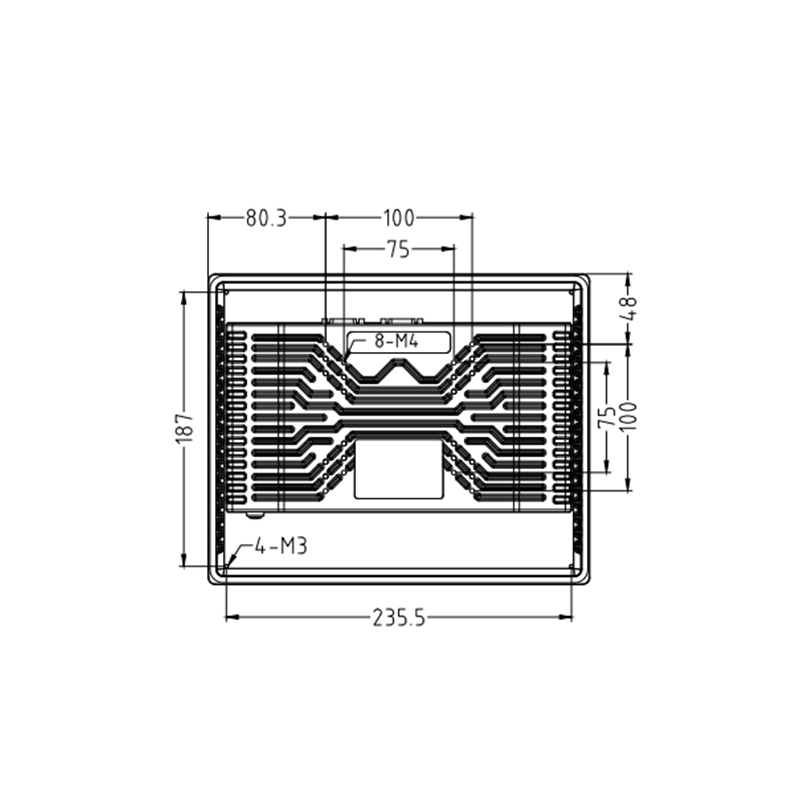

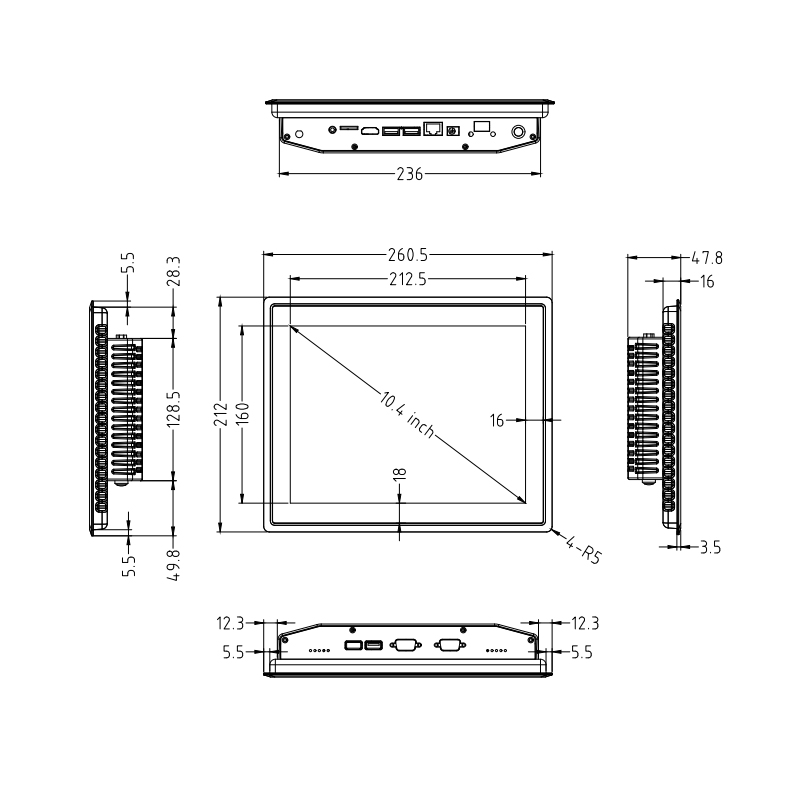

Dimension

  • Machine(mm)260.5（W）* 212（H）* 47.8（T）
  • Embedded opening size(mm)250.5（W）* 202（H）
  • Net weight1.69 KG
  • Gross weight2.31KG
  • Mounting bracketEmbedded/Wall mounted

Included in the Delivery

  • Manual* 1
  • Snap* 4
  • WIFI antenna* 1
  • Power Adapter&cable* 1

File Download

10.4" Industrial Android Touch PC DM104F

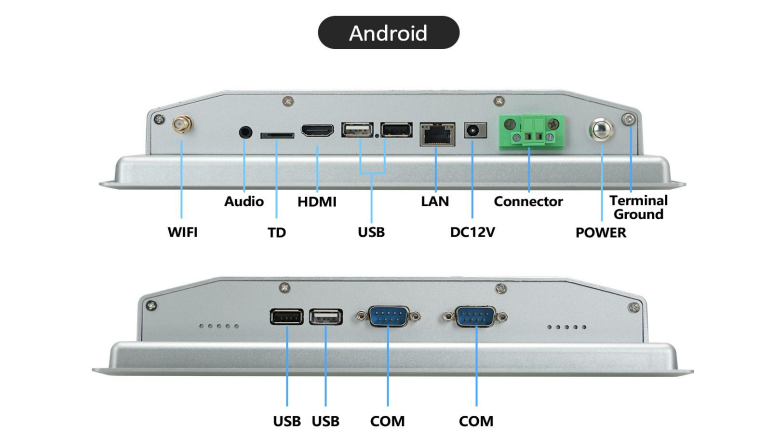

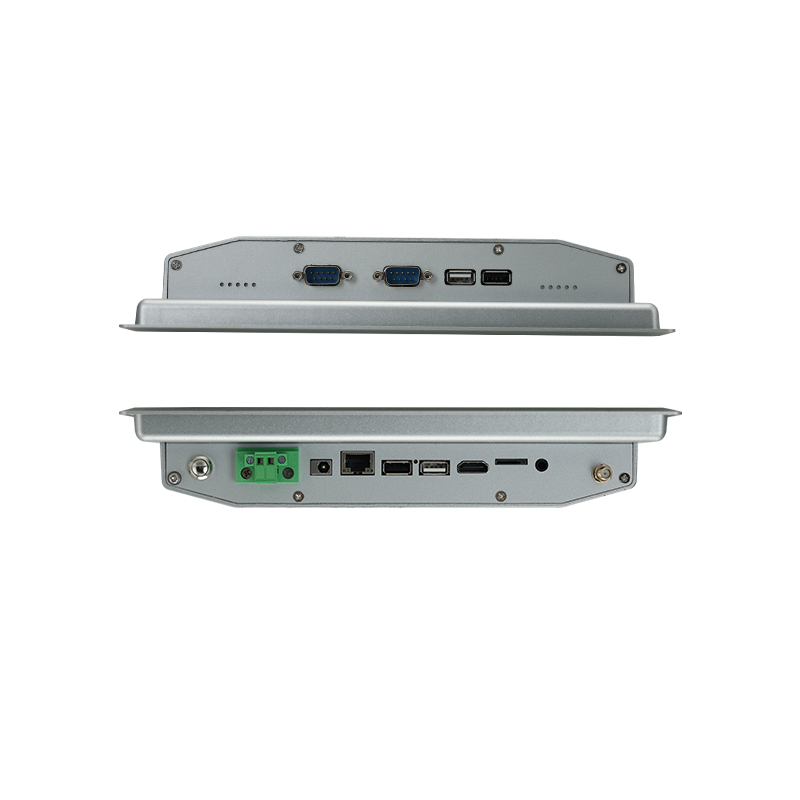

Interface l/0

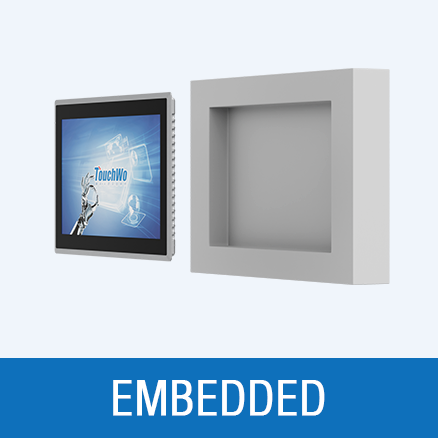

Versatile Installation Options

Supports embedded and wall-mounted setups, offering flexibility for any installation requirement.

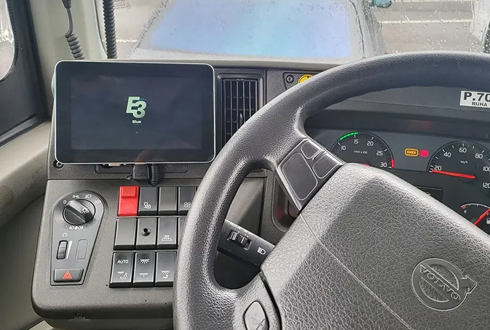

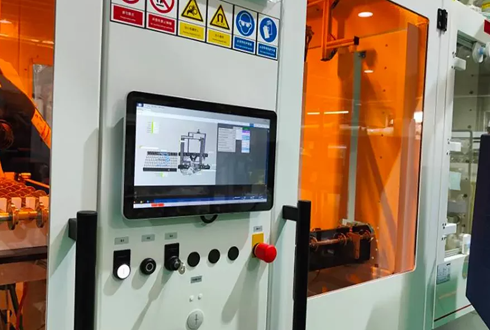

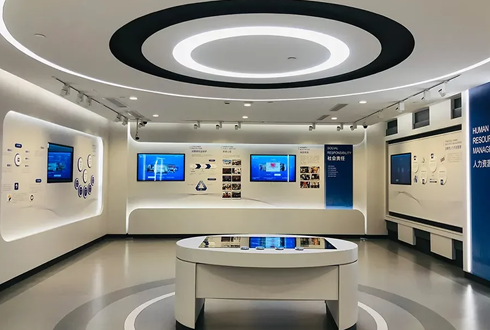

As Seen in Diverse Industries

TouchWo enhances cost effectiveness while delivering a more smooth experience for intelligent interactions.
